EBS MicroBass 3 – Professional Outboard Preamp

£369.00 GBP
£369.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The EBS Microbass 3. We’ve all been there. Being forced by circumstances to rely on someone else's gear and left with that uneasy feeling it could turn into a disaster. With the new ebs microbass 3, you can let go of that feeling and be confident you’ll have your sound no matter the situation.

Read More

The EBS MicroBass 3 is a 2-channel preamp, built exclusively with premium components. It is engineered by EBS in Sweden with technologies from the famous HD360 and Fafner II amplifier designs.

Professional grade signal level

The preamp operates at a signal level equal to a professional mixing console which gives you plenty of headroom. The high signal level makes it suitable to use as a preamp in combination with any type of power amp.

Clean and Drive in series or parallel

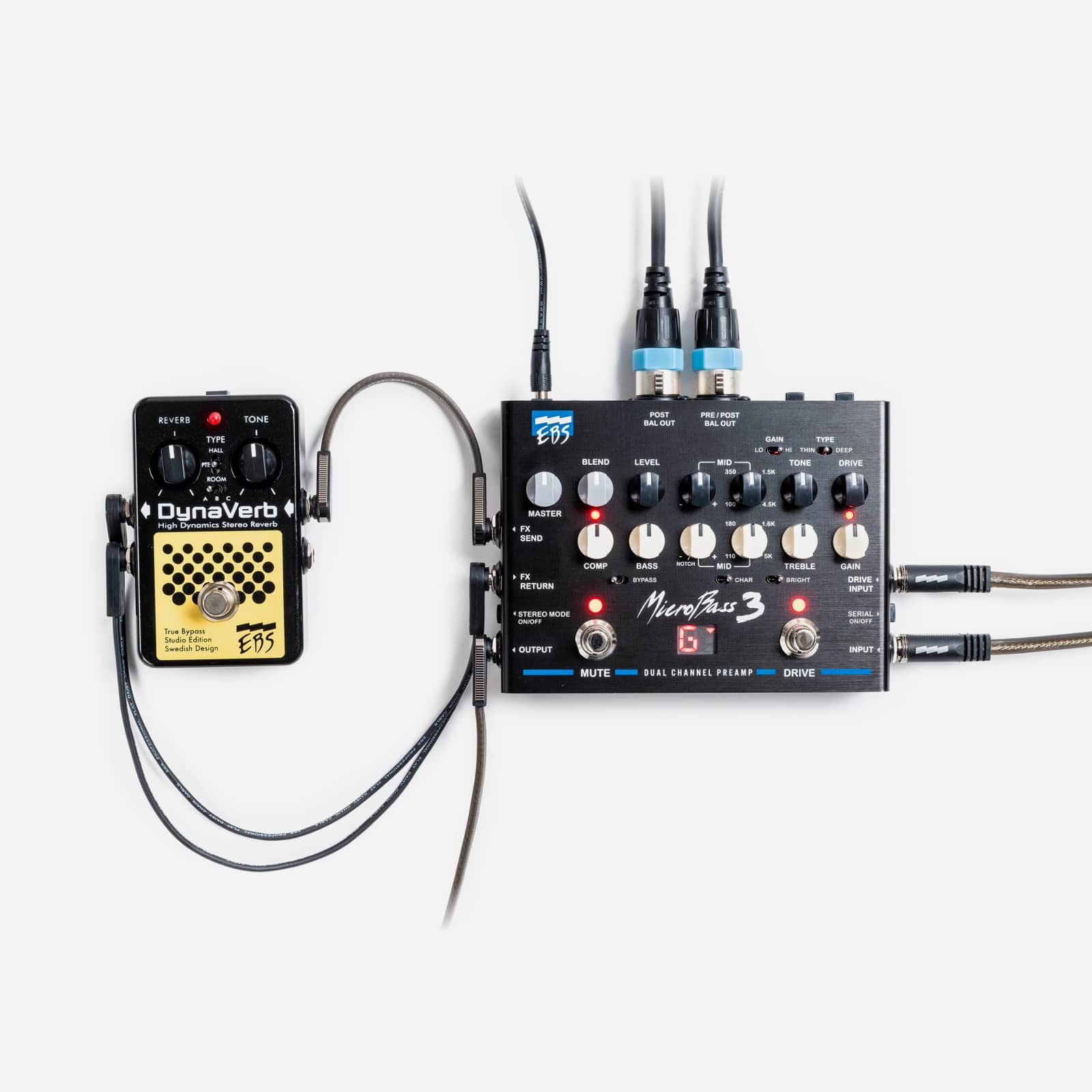

Run the Clean and Drive channels in series or parallel. Use the dual balanced XLR-outputs to tap the signal post and pre EQ at the same time. If you run the Effects loop in stereo mode, the balanced outputs become a Left and Right output instead.

Handles any type of bass

With 10 Mohms input impedance, it handles any type of bass – passive, active, or with piezo pickups.

Onboard Tuner & Compressor

The built-in tuner makes it easy to tune between songs without the need of an external device. The MicroBass 3 also carries an onboard compressor, similar to the one found on several EBS amplifiers.

The analog EBS MicroBass 3 ensures your sound – every time.

Specifications

Clean Channel:

  • Input Impedance:
    • Parallel mode 1.5 Mohms // 44 pF
    • Serial mode 10 Mohms // 22 pF
  • Gain:
    • Gain Range min/max -oo/ +30 dB
    • Gain Peak LED +10 dBv
    • Frequency Response +0 / -3 dB 20 - 20.000 Hz
  • Character:
    • Filter Type Shelving High/Low Pass
    • Gain: Lo +6 dB @ 80 Hz / Mid -2 dB @ 900 Hz / Hi +3 dB @ 7.5 kHz
  • Bright:
    • Filter Type Shelving. Gain: +10 dB @ 10 kHz
  • Filter Section:
    • Bass Filter: Type 12 dB/oct. Shelving. Gain Range +/- 18 dB @ 60 Hz
    • Middle Filter: Type Bandpass Filter. Freq Range 50 - 5.000 Hz. Q - Boost 0.5 - 1.3, Q - Cut 0.5 - >5. Gain Range +/- 12-15 dB
    • Treble Filter: Type Shelving. Gain Range +/- 18 dB @ 8 kHz
  • Comp/Limit: Comp Gain 0 dB
    • Attenuation max 24 dB
    • Compression Ratio max 3:1
    • Attack (80%) typ <10 ms
    • Release (80%) typ 100 ms

Drive Channel

  • INPUT: Input Impedance 1.8 Mohms // 22 pF
  • DRIVE: Gain Range 40 dB
  • ENGINES:
    • Lo: Type 2nd harmonics soft
    • Hi: Type Symmetrical 2-stage with +18 dB gain
  • TYPE: Thin/Normal/Deep / Pre Drive EQ
  • FILTER SECTION:
    • Tone Filter: Type 6 dB/oct. Low Pass. Frequency Range 700 - 20k Hz
    • Middle Filter: Type Bandpass Filter. Frequency Range 100 - 4.500 Hz. Q 1.2, Gain Range +/- 15 dB

Effects Loop:

  • Loop Signal Level nominal -10 dBv
  • Gain Unity (1:1)
  • Output Impedance <100 ohms
  • Input Impedance >200 kohms // 22 pF

Phones Out:

  • Recommended Impedance 32 - 200 ohms

Aux Input:

  • Input Impedance 20 kohms
  • Nominal Level -10 dBv

Output:

  • Output Impedance <1 kohms
  • Signal Level nominal 0 dBv

Balanced Outputs:

  • Output Level nominal -20dBv
  • XLR Connections 1-GND, 2-Hot, 3-Cold
  • Options Pre/Post EQ, L/R Ch. in stereo mode

Auxiliary Info:

  • Power Requirements Idle 450mA @9V. Max 750mA @9V (with headphones at max output level)
  • Dimensions (WxDxH): max 168 x 124 x 53 mm / 6.6" x 4.9" x 2.1"
  • Weight: 660 g ( 1.5 lbs.)

Specifications are subject to change without notice.
